Weight & Balance for WVFC Aircraft

Tail Number: N472KE - Cirrus SR22


Weight & Balance, Normal Category (lbs, in):
Item Weight (lbs) Max Δ Arm Moment
Empty Weight 2323 3600 1277 139.20 323361
Front Seats 143.50 48790
Rear Seats 180.00 30600
Fuel
(tabs = 60 gal)

(60.0 gal)
552
(92.0 gal)
192 154.90 55764
Baggage 130 80 208.00 10400
Total 3243 3600 357 144.59 468915

check mark Weight and CG are within limits for the Normal category.

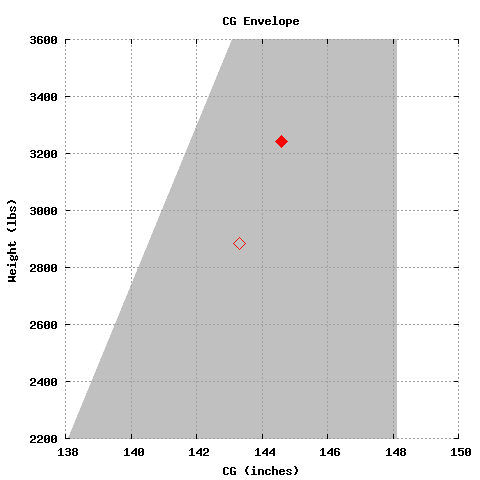

CG Envelope


Basic Weights (lbs):
Empty Weight MGTW MRW MLW
2323 3600 3600 3600

Normal category CG Limits (lbs, in):
Up to Fwd Limit Aft Limit
2200 138.10 148.10
3600 143.10 148.10


NB: W&B information in this calculator may not be current or accurate. This calculator is provided as a pre-flight aid but it is not a substitue for the offical W&B calculations that the pilot should perform before each flight. Pilots should always calculate the W&B on the ramp prior to takeoff using the latest data from the POH and actual payload weights, and taking into account all circumstances including the difference between takeoff and landing fuel quantity and weight.


Weight & Balance calculator created by Wes Irish of cfiwes.com.
